Important Safeguardsssss

When using the X1 Chiller, always observe basic safety precautions, including the following:

Leakage Protection: Test the TEST button on the leakage switch before using the ice bath to ensure effective leakage protection.

Child Safety: Ensure children are supervised to prevent them from playing with the chiller.

Chiller Positioning: Avoid tilting the chiller more than 45 degrees to prevent compressor malfunction.

Air Inlet Protection: Do not cover the chiller's air inlet holes to avoid
compressor failure.

Placement: Maintain at least 70 cm distance from the wall to prevent hot air from re-entering the chiller. Do not place the chiller in a small enclosed space.

Power Safety: Do not unplug the chiller when the ozone signal is flashing on the screen.

Condensation: It is normal for condensate water to leak from the chiller when in heating mode.

Outdoor Use: Place the chiller indoors or under shelter if placed outside and protect it from freezing during winter weather.

Freezing Prevention: Drain the water inside the chiller if the ambient
temperature is below 0°C to prevent freezing and damage.

Operation: Turn off the chiller and unplug the power supply before taking a bath once it reaches the set temperature.

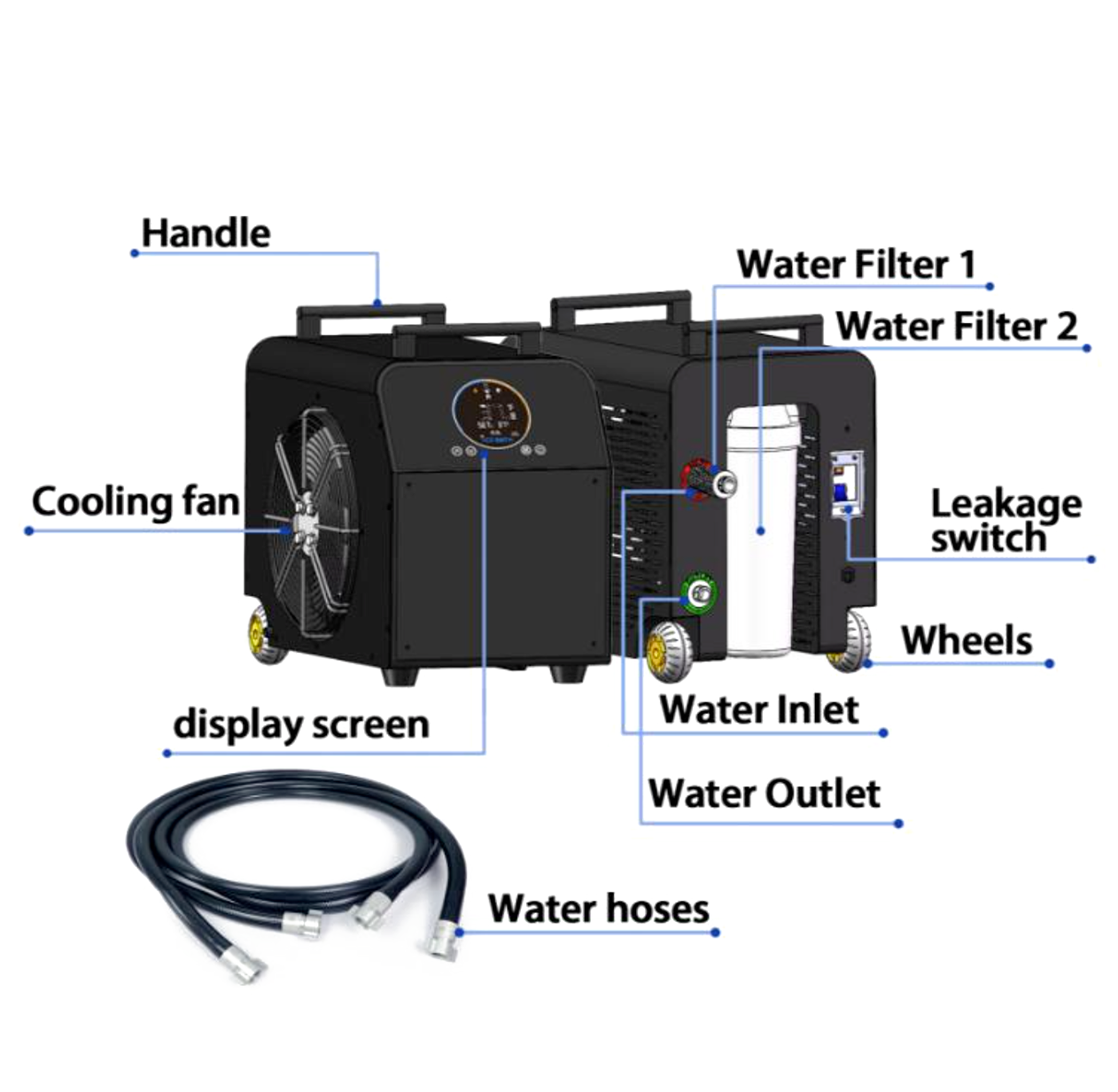

Appliance Description

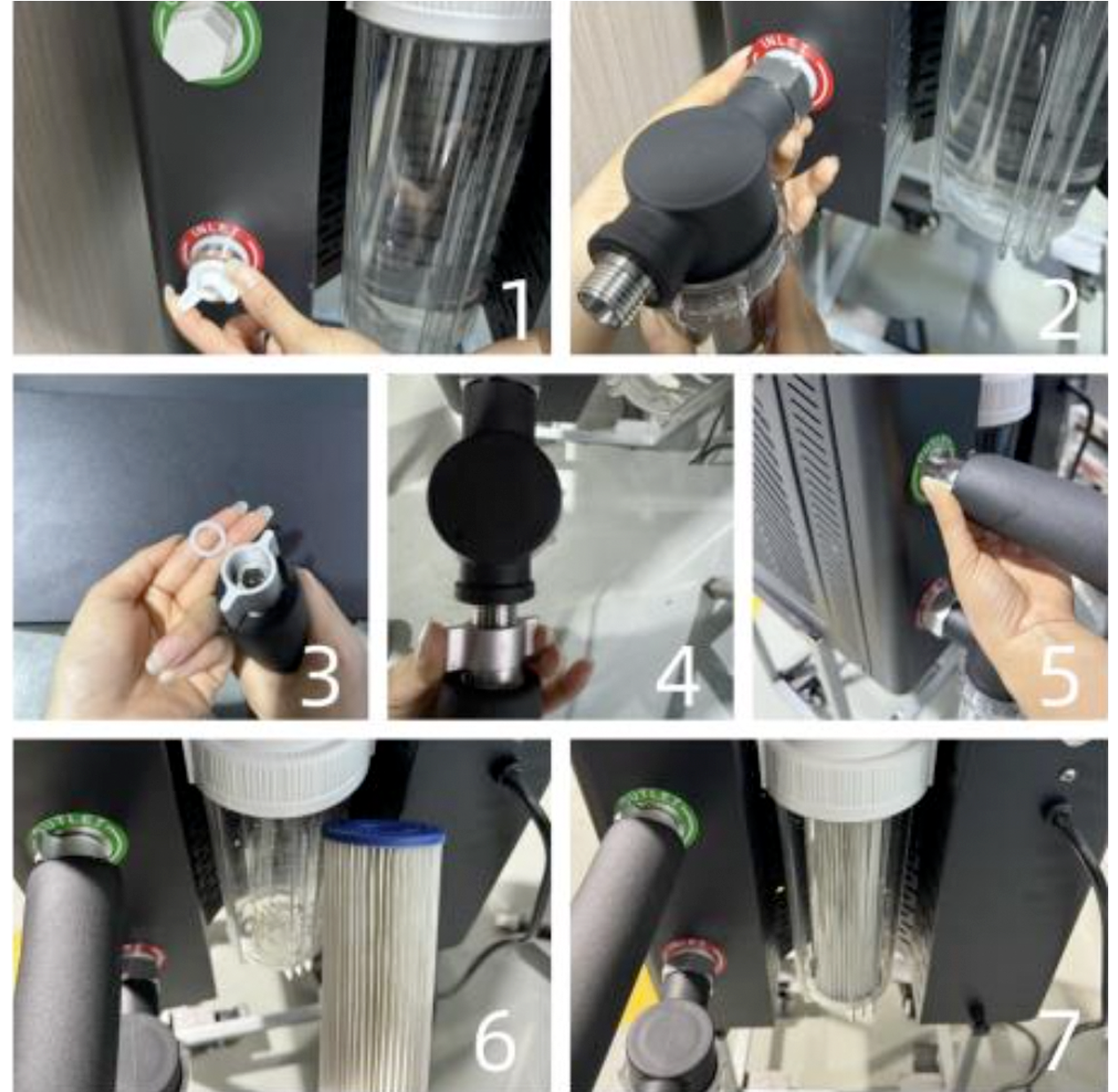

x1 Installation Part 1

x1 Installation Part 2

Control Panel Description

Adjusting Target Temperature:

  • Click the 'SET' button until the display starts flashing.
  • Use the 'UP' or 'DOWN' button to set the desired target temperature.

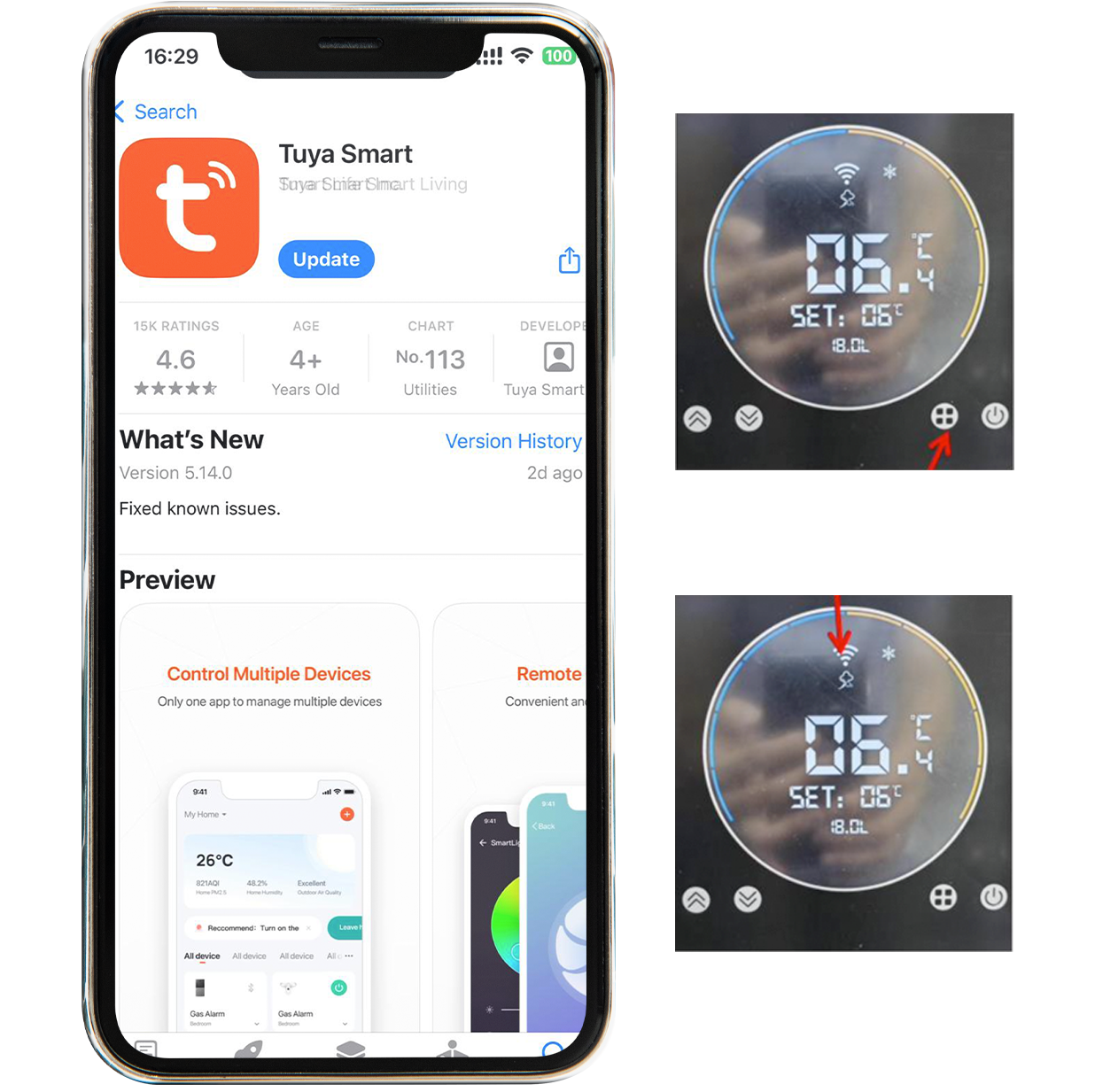

    Connecting to WiFi via Bluetooth:
  • Ensure your phone’s Bluetooth is switched on.
  • Connect to a 2.4GHz WiFi network (the chiller does not support 5GHz networks).
  • Press and hold the 'SET' button on the chiller for 6 seconds until you hear a beep. The WiFi icon on the chiller should start flashing.
  • Open the TUYA app on your device and follow the prompts to connect with the chiller.

    Child Lock
  • Activating/Deactivating Child Lock:
  • Press and hold both the 'UP' and 'DOWN' buttons together for 5 seconds to lock or unlock the control panel.

    Changing Modes
  • Switching Between Modes:
  • Press and hold the 'UP' button for 15 seconds to toggle between 'cold only' and 'dual temperature' modes, if the chiller is designed to support both modes.

    Changing Temperature Units:
  • Switching Between °C and °F:
  • Press and hold the 'DOWN' button for 10 seconds to switch the temperature display units between Celsius (°C) and Fahrenheit (°F).

Operating Conditions

Cooling Mode: Ambient temperature range of -5°C to 40°C.

Heating Mode: Ambient temperature range of -10°C to 40°C.

Storage: Store at a temperature range of 1°C to 50°C with relative humidity between 20% and 85%.

Important Reminders
Disconnect inlet and outlet hoses and run the chiller without water until "FL" is shown on the screen when not in use to prevent scale deposits and freezing damage.

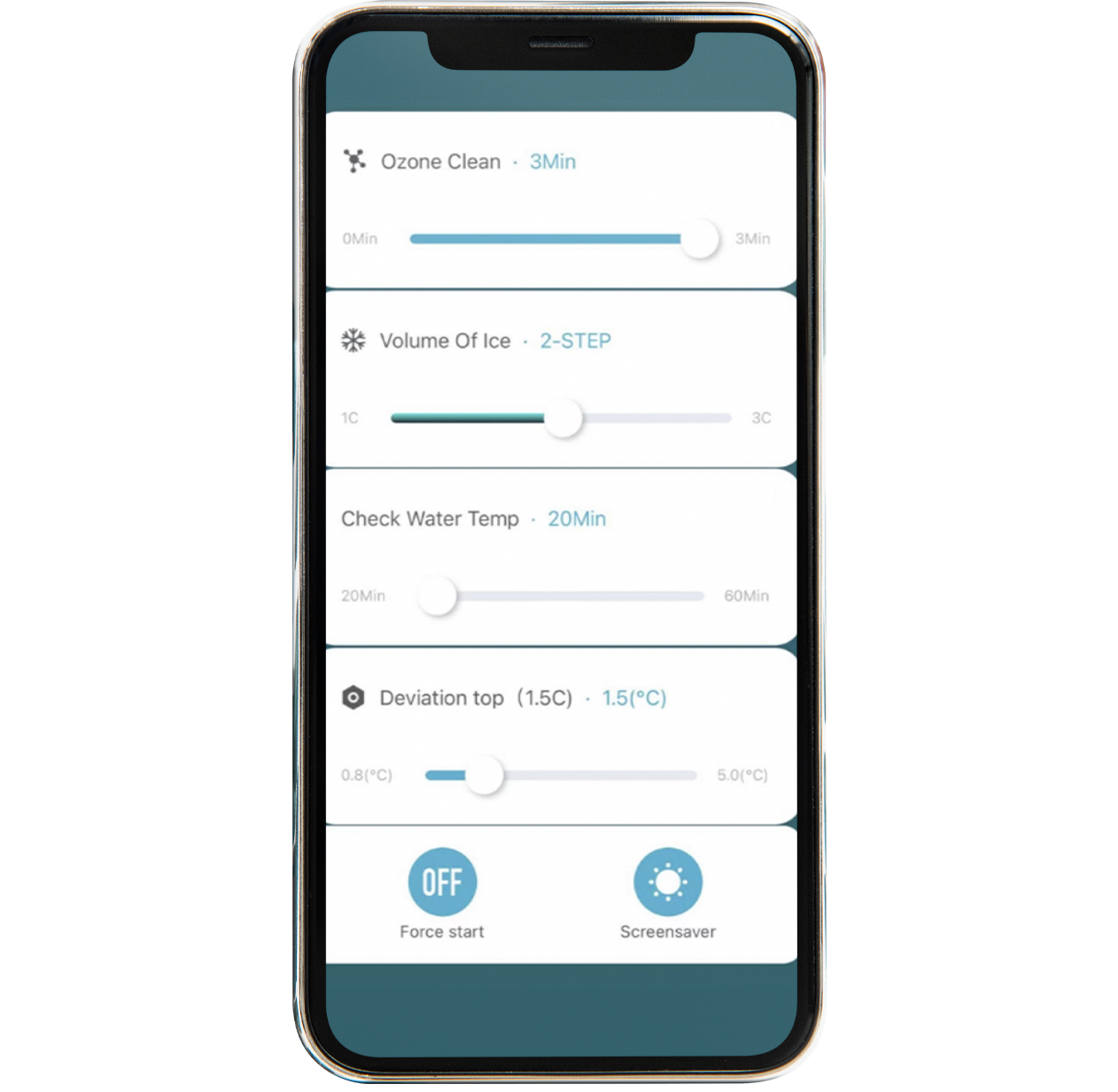

APP Connection

APP Connection
